Torque monster clutch kits

This is a discussion on Torque monster clutch kits within the Grizzly Engine & Transmission forums, part of the Grizzly Forums category; I have a 09 grizzly 700 with a 2inch lift and 27inch zillas, im looking at redoing the clutch for more low end. Should i ...


Go Back   Yamaha Grizzly ATV Forum > Grizzly Forums > Grizzly Engine & Transmission

Grizzly Engine & Transmission Discuss your Grizzly engine and transmission modifications here.


Reply


Join Date: Oct 2008
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
grizzly84 is on a distinguished road
Quote
#1
03-09-2010, 07:08 PM
Torque monster clutch kits

I have a 09 grizzly 700 with a 2inch lift and 27inch zillas, im looking at redoing the clutch for more low end. Should i go with the 450 weight swap, or thinking about the torque monster clutch kit. Ive read that the shim that comes witht the torque monster kit makes it rev alot higher. If i left the shim out and just used the torque monster weights, would it rev the same as stock? Any help would be great!
Reply With Quote
grizzly84 is offlineReport Post

hunt906's Avatar

Join Date: Feb 2010
Age: 26
Posts: 17
Thanks: 1
Thanked 4 Times in 4 Posts
Rep Power: 0
hunt906 will become famous soon enough
Quote
#2
03-09-2010, 07:20 PM
I have a torque monster in my 660 grizzly. I love it and yes it will make you rev a little higher then it used to from mid to high range but thats where the extra torque is coming from. I run my without the shim in it and it does very well. With the shim out you wont notice much higher rpms than it was at stock but it will a little. Its a great kit and would suggest it to anyone.
__________________
2003 Grizzly 660
-29.5 Outlaws
-ITP SS312 Wheels
-Warn 3000 lb. Winch w/ Synthetic Cable
-Torque Monster Clutch Kit
-Fully Snorkeled
Reply With Quote
hunt906 is offlineReport Post

Bill Nobles's Avatar

Join Date: Nov 2009
Age: 35
Posts: 478
Thanks: 96
Thanked 19 Times in 19 Posts
Rep Power: 58
Bill Nobles is a jewel in the roughBill Nobles is a jewel in the roughBill Nobles is a jewel in the rough
Location: Mangham, Louisiana

Quote
#3
03-09-2010, 07:53 PM
Im running 28s with the shim mod and 4 450 weights, ended up costing me about 50 dollars to do it and it made a big difference. Try it before you buy the kit. Im sure with 27s its all you would need.
Reply With Quote
Bill Nobles is offlineReport Post

MikeT''s Avatar

Join Date: Jan 2010
Age: 39
Posts: 265
Thanks: 7
Thanked 28 Times in 24 Posts
Rep Power: 56
MikeT' is a jewel in the roughMikeT' is a jewel in the roughMikeT' is a jewel in the rough
Location: Highlands, TX

Quote
#4
03-09-2010, 09:23 PM
I will have one for sale in the near future, I estimate with in two weeks or so. I am going to a machined sheave, epi white secondary spring, epi severe duty belt, epi stall wet clutch springs and probably 8 660 wieghts.
__________________
09' 700 Griz limited red midnight armor
29.5 Outlaws on ITP ss112's
2 Brothers Racing M7 pipe
Powercommander III
K&N Air filter/Snorkeled
Dynatech coil
1mm shim/White EPI spring
Warn RT25 winch w/synthetic cable
Aluminum Products A-Arm guards
Sony marine head unit
MB Quart 180 W marine amp
2x8" and 2x6.5" Memphis marine speakers
Tamarack Titan rear seat with 6x9 Memphis marine speakers
5 20w red led neon strips in fender wells/body/frame
and a set of cast iron nuts............
Reply With Quote
MikeT' is offlineReport Post

jlamb's Avatar

Join Date: Aug 2009
Age: 34
Posts: 696
Thanks: 35
Thanked 109 Times in 99 Posts
Rep Power: 62
jlamb has much to be proud ofjlamb has much to be proud ofjlamb has much to be proud ofjlamb has much to be proud ofjlamb has much to be proud ofjlamb has much to be proud ofjlamb has much to be proud ofjlamb has much to be proud ofjlamb has much to be proud of
Location: Michigan

Quote
#5
03-09-2010, 09:49 PM
Yes, the machined sheave is the way to go!!
__________________
2003 Grizzly 660
-Fully Loaded "View my Garage" -"YACC #11"

2011 Can-Am 800R XMR

2011 Ski-Doo MXZ X 800R E-TEC
Reply With Quote
jlamb is offlineReport Post

Join Date: Oct 2008
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
grizzly84 is on a distinguished road
Quote
#6
03-10-2010, 07:12 AM
Thanks! Think im gonna try the 4 450 weight set up first and see how that is. Not sure if ill put a shim in or not yet, i dont want it to rev to high cuz i do go 40-50 mph now and then.
Reply With Quote
grizzly84 is offlineReport Post

Join Date: Aug 2011
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
muddaddy is on a distinguished road
Location: maine

Quote
#7
08-21-2011, 07:58 PM
When you do the kit be sure to really ruff the sheve up and clean with brake cleaner you will notice a ton. Different and the belt will reseat better and you really notice the kit after about 50 miles of riding but you can 4 sure tell right off
Reply With Quote
muddaddy is offlineReport Post

GrizzNasty's Avatar

Join Date: Mar 2011
Posts: 1,659
Thanks: 136
Thanked 320 Times in 261 Posts
Rep Power: 45
GrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond repute
Location: Pensacola Fl

Quote
#8
08-21-2011, 08:31 PM
dont buy a kit, the torque monster is nothing but lighter weights and like 1.2 mm of shim which is doable for less than 10 bucks on your own.

check this out. The Clutch Kit Thread- EXPO$ED!

nothing wrong with drilling your weights out now either..
__________________
______________
Josh
09 Black 700
28x10 SwampLawz
Gold Secondary
2mm shim
Stalld
Rad Racked
Snorks
Rhinos
etc

SOLD

Tweeked Slick60

- mileanhour.com
Reply With Quote
GrizzNasty is offlineReport Post

GrizzNasty's Avatar

Join Date: Mar 2011
Posts: 1,659
Thanks: 136
Thanked 320 Times in 261 Posts
Rep Power: 45
GrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond reputeGrizzNasty has a reputation beyond repute
Location: Pensacola Fl

Quote
#9
08-21-2011, 08:33 PM
also, I run 1.5 shim with other stuff too, you wont revv too high.
__________________
______________
Josh
09 Black 700
28x10 SwampLawz
Gold Secondary
2mm shim
Stalld
Rad Racked
Snorks
Rhinos
etc

SOLD

Tweeked Slick60

- mileanhour.com
Reply With Quote
GrizzNasty is offlineReport Post

wayupnorth's Avatar

Join Date: Oct 2009
Age: 63
Posts: 6,440
Thanks: 262
Thanked 1,431 Times in 1,118 Posts
Rep Power: 79
wayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond reputewayupnorth has a reputation beyond repute
Location: on the Knik River, Alaska

Quote
#10
08-21-2011, 09:26 PM
Incorrect info in this thread- shims don't make the engine rev higher. Lighter weights make it rev higher.
__________________
09 Polar Bear HO- 05 660 Grizz My Garage PIKS Clutch kit thread

Defender of the Yamaha Grizzly
Reply With Quote
wayupnorth is offlineReport Post

07grizzlymud's Avatar

Join Date: Apr 2008
Posts: 2,553
Thanks: 231
Thanked 399 Times in 345 Posts
Rep Power: 83
07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute07grizzlymud has a reputation beyond repute
Location: Regina Sask CANADA

Quote
#11
08-21-2011, 11:47 PM
Yes there are a LOT of post already on all of this and how the clutch works. Just do some SEARCHING and READING.
__________________
07 7??. 29.5 Laws, Barkers Duals, PCV with auto tune, Dyna, Fully Snorkeled, rad relocated, airdam//WCD + ,Gorilla's. PARTING OUT
09 Gade 800RT, 29.5's, STM's, Hair drier modded
Reply With Quote
07grizzlymud is offlineReport Post

muddawg's Avatar

Join Date: Mar 2012
Age: 34
Posts: 44
Thanks: 0
Thanked 6 Times in 6 Posts
Rep Power: 0
muddawg will become famous soon enough
Location: swainsboro ga

Quote
#12
03-05-2012, 01:58 PM
hey im in need of some clutch info on my 660 will you please contact me at 9123140452 thanhs.
Reply With Quote
muddawg is offlineReport Post

Civicgsr's Avatar

Join Date: Dec 2010
Age: 32
Posts: 4,892
Thanks: 466
Thanked 1,395 Times in 1,057 Posts
Rep Power: 62
Civicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond repute
Location: Calgary, Alberta

Quote
#13
03-05-2012, 02:40 PM
Quote:
Originally Posted by muddawg View Post
hey im in need of some clutch info on my 660 will you please contact me at 9123140452 thanhs.
Post your questions on this forum or do some searching. There's a wealth of knowledge with all the members here.
__________________
2002-686
JBS
Snork'd
28" ML's
Reply With Quote
Civicgsr is offlineReport Post
The Following User Says Thank You to Civicgsr For This Useful Post:
AUSSIE BATTLER (03-05-2012)

muddawg's Avatar

Join Date: Mar 2012
Age: 34
Posts: 44
Thanks: 0
Thanked 6 Times in 6 Posts
Rep Power: 0
muddawg will become famous soon enough
Location: swainsboro ga

Quote
#14
03-05-2012, 04:40 PM
where does the shims go and do i need 3
Reply With Quote
muddawg is offlineReport Post

Civicgsr's Avatar

Join Date: Dec 2010
Age: 32
Posts: 4,892
Thanks: 466
Thanked 1,395 Times in 1,057 Posts
Rep Power: 62
Civicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond reputeCivicgsr has a reputation beyond repute
Location: Calgary, Alberta

Quote
#15
03-05-2012, 05:26 PM
Quote:
Originally Posted by muddawg View Post
where does the shims go and do i need 3
Shim install thread.
How to do the shim mod.

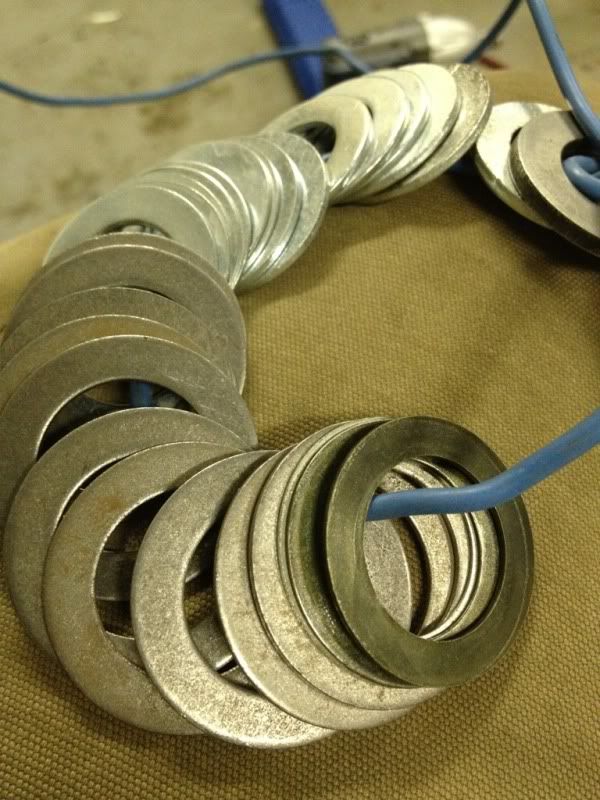

Sizes can be. 19-22mm ID and 31-36mm OD

Go to a local fastener supply and get lots ranging from .5-2.2mm. thickness. Then you have lots to play around with for less then ten bucks.

__________________
2002-686
JBS
Snork'd
28" ML's
Reply With Quote
Civicgsr is offlineReport Post
