660 Clutch bearing housing removal "4 legged cage"

This is a discussion on 660 Clutch bearing housing removal "4 legged cage" within the Grizzly Talk forums, part of the Grizzly Forums category; I'm trying to do the shim mod on my grizzly 660. I have done this on 3 King Quads and 3 Rhinos. But I'm having ...


Go Back   Yamaha Grizzly ATV Forum > Grizzly Forums > Grizzly Talk


Grizzly Talk Here we talk about our Grizzlys in general.


Reply


Join Date: Mar 2012
Age: 41
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
ClayW is on a distinguished road
Quote
#1
03-03-2012, 07:41 PM
Question 660 Clutch bearing housing removal "4 legged cage"

I'm trying to do the shim mod on my grizzly 660. I have done this on 3 King Quads and 3 Rhinos. But I'm having a bit of trouble removing the bearing housing that has the 4 legs and bolts. I have had to wack them before with a hammer to get them to come loose. After the bolts were removed of course. I have removed all 4 bolts. But the 4 legged bearing housing will not jar loose. I have hit it with a hammer from all 4 angles. But nothing... Scared I'm gona break something. What's the deal? Something I am missing? Hit it harder?

Thanks,

Clay
Reply With Quote
ClayW is offlineReport Post

bigredgrizzly's Avatar

Join Date: Apr 2008
Age: 39
Posts: 438
Thanks: 64
Thanked 56 Times in 50 Posts
Rep Power: 101
bigredgrizzly is a name known to allbigredgrizzly is a name known to allbigredgrizzly is a name known to allbigredgrizzly is a name known to allbigredgrizzly is a name known to allbigredgrizzly is a name known to all
Location: nova scotia

Quote
#2
03-03-2012, 07:50 PM
nope,if you removed the bolts it should come off. the last time i took mine off it came off hard too. just keep trying
__________________
2008 grizzly 700
26" bighorn OG's on ss212 black wheels
rigid industries 10" sr series driving light
ehs big 3 with uni air filter
jbs sheave,18gram weights,purple secondary
500 rpm stall springs
perfex skid plate
heat demon heated grips and thumb
rear pass. seat
Reply With Quote
bigredgrizzly is offlineReport Post

Join Date: Mar 2012
Age: 41
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
ClayW is on a distinguished road
Quote
#3
03-03-2012, 08:52 PM
Guess I will whop it afew more times with a hammer
Reply With Quote
ClayW is offlineReport Post

Dan1724's Avatar

Join Date: Mar 2010
Age: 43
Posts: 2,094
Thanks: 837
Thanked 500 Times in 377 Posts
Rep Power: 84
Dan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond reputeDan1724 has a reputation beyond repute
Location: Upper Red Lake Area - Kelliher, Minnesota

Quote
#4
03-03-2012, 09:22 PM

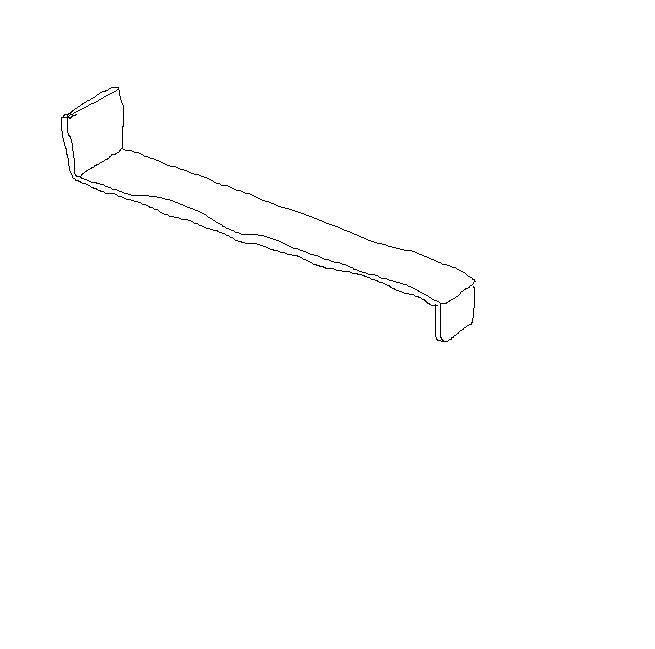

If you can use a rubber mallet you'll minimize the chances of busting it. Plus, remember that it's holding the shaft in there, so you don't want to bang it around too much. I made a bent bar to hammer on. Looked like this:

__________________
RED 2002 Grizzly 660, 28" Gorilla Silverbacks, Wiseco 11:1 Piston, HotCams Stage 1 Raptor Cam, Raptor Valve Springs, DizGrizz Serious Air Filter Mod HERE, K&N Air Filter, Custom Rad Relocate, 1mm Shim, 660 Mega-Air Snorkels HERE,Powermadd Handguards, ODI Rogue Grips.
Reply With Quote
Dan1724 is offlineReport Post
